PROTECTION COORDINATION · CANADA

Relay Coordination Study for Canadian Facilities

Protection coordination decides which device clears a fault and how long it takes. Grade it one way and a local fault trips the whole plant. Grade it the other way and clearing times stretch, raising incident energy at every downstream location and pushing your CSA Z462 PPE categories up with it.

Free Consultation
CSA Z462IEEE 1584CCOHS CompliantCEC Standards

What a Canadian Coordination Study Has to Achieve

Selectivity and clearing time pull against each other. The study is where that trade-off is made deliberately rather than by accident.

What We Deliver

Selectivity, device by device

The device nearest the fault should operate first. Grading time-current characteristics through the system keeps an upstream device holding while the downstream one clears, which is what keeps a local fault local.

WHAT GOES WRONG

Where Coordination Studies Fail

Coordination problems generally reveal themselves during a fault, which is the most expensive possible moment to find them.

  • Settings modelled from design documents rather than recorded as found.
  • Selectivity optimised with no regard for the resulting incident energy.
  • Utility upstream protection characteristics assumed rather than obtained.
  • Instantaneous elements left enabled where they defeat grading.
  • Study not revisited after relays were replaced or re-set.
  • CSA Z462 labels issued from assumed clearing times rather than coordinated ones.
Contact Us

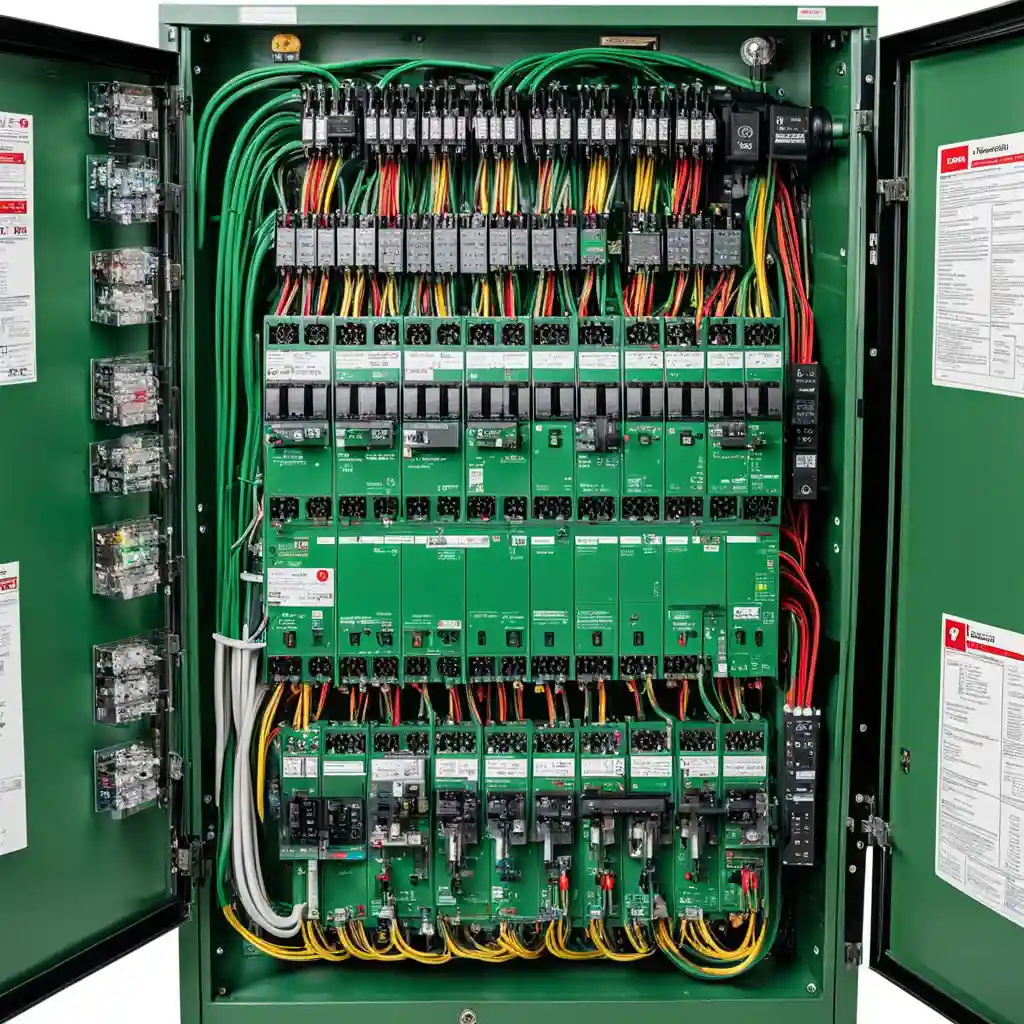

Relay coordination study protecting workers at a US industrial facility
Relay coordination study report and TCC curves from Carelabs

THE OUTCOMES

What the Report Contains

The deliverable is a settings schedule the site can actually apply, with the curves that justify it and the arc flash consequence of each choice stated alongside.

  1. 1Settings as found, recorded per device
  2. 2Time-current curves showing graded operation
  3. 3Recommended settings schedule for implementation
  4. 4Clearing times at each location
  5. 5Resulting incident energy for CSA Z462 assessment
  6. 6Province, utility protection data and its source
Reach Out

How We Run a Canadian Coordination Study

01

Build on a validated model

Coordination needs load flow and short circuit results first, since grading depends on the fault current available at each device.

02

Record settings as found

Capture every relay and breaker setting as currently applied, including whether instantaneous elements are enabled.

03

Obtain utility characteristics

Request the provincial utility's upstream protection data, because grading has to hold at the service as well as inside the plant.

04

Grade and test against arc flash

Develop settings that hold selectivity, then check the resulting clearing times against incident energy so the trade-off is explicit.

05

Issue an applicable schedule

A settings schedule with curves, clearing times and CSA Z462 consequences, in a form the site can implement and verify.

Industries We Empower

Oil & Gas

Upstream, midstream, and downstream facilities across Canada

Healthcare

Hospitals, clinics, and medical campuses

Data Centers

Tier I through Tier IV facilities

Manufacturing

Production lines and industrial plants

Utilities

Generation, transmission, and distribution

Commercial Real Estate

Office buildings and retail complexes

Education

Universities, schools, and research labs

Government

Federal, provincial, and municipal facilities

Frequently Asked Questions

A relay coordination study in Canada is an engineering study that evaluates electrical system behaviour against CSA Z462, IEEE 1584, and the Canadian Electrical Code. Carelabs engineers analyse your facility, produce labelled single-line diagrams, and deliver a compliance report used to specify PPE, clearances, and protective device settings for safe operation.
Carelabs relay coordination study reports comply with CSA Z462 (workplace electrical safety), IEEE 1584-2018 (arc flash calculation), the Canadian Electrical Code (CEC), and IEC 60909 where applicable. Every deliverable cites the clauses used so your safety officer can audit the methodology.
CSA Z462 requires a relay coordination study to be reviewed every 5 years, or sooner if the electrical system has been modified — for example, after a transformer replacement, utility upgrade, breaker change-out, or significant load addition. Carelabs offers annual walkthrough reviews for clients with evolving facilities.
Carelabs delivers relay coordination study in Canada using CSA Z462, IEEE 1584, and Canadian Electrical Code methodologies. Our P.Eng team produces labelled drawings, incident-energy calculations, and documented compliance reports — contact us for scope specific to your facility.
Carelabs delivers relay coordination study in Canada using CSA Z462, IEEE 1584, and Canadian Electrical Code methodologies. Our P.Eng team produces labelled drawings, incident-energy calculations, and documented compliance reports — contact us for scope specific to your facility.
A relay coordination study in Canada is an engineering study that evaluates electrical system behaviour against CSA Z462, IEEE 1584, and the Canadian Electrical Code. Carelabs engineers analyse your facility, produce labelled single-line diagrams, and deliver a compliance report used to specify PPE, clearances, and protective device settings for safe operation.
Relay Coordination Study is important in Canada because energised electrical work is the leading cause of industrial burn injuries, and CSA Z462 makes documented analysis mandatory before workers approach live equipment. A proper relay coordination study identifies hazards, specifies PPE, and proves due diligence to provincial OHS inspectors.
Relay Coordination Study cost in Canada varies with facility size, number of buses, voltage levels, and data completeness. Typical projects range from a few thousand dollars for small sites to tens of thousands for multi-substation plants. Carelabs scopes every project from equipment count and drawing quality — contact us for a fixed quote.
A typical relay coordination study for a Canadian mid-size facility takes 3 to 6 weeks from kickoff to final report. Timeline depends on data-gathering completeness, number of buses modelled, field verification scope, and report revisions. Carelabs delivers a locked schedule with milestones at kickoff.
Carelabs relay coordination study reports comply with CSA Z462 (workplace electrical safety), IEEE 1584-2018 (arc flash calculation), the Canadian Electrical Code (CEC), and IEC 60909 where applicable. Every deliverable cites the clauses used so your safety officer can audit the methodology.

Grade for Selectivity Without Raising Your PPE Category
