Arc Flash Study
Find Out What It's All About
CareLabs provides low-cost electrical arc flash analysis, investigation, and certification services to organizations of all sizes. To guarantee that your electrical safety program is up-to-date, compliant, and comprehensive, certified specialists will examine the arc flash threats, staff training requirements, paperwork requirements, and PPE (Personal Protection Equipment) requirements. CareLabs makes early arc flash risk assessment and appropriate reduction of harmonic distortion effects feasible, assuring the safety of the equipment. ETAP (Electrical Transient Analysis Program) software is used to analyze and study arc flashes.
What is Involved
Arc flash refers to the quantity of heat and light produced by an arc fault. Something occurs when a current flows across an air gap between conductors. The arc flash emits a substantial amount of light and heat, which ionizes the air (approximately 35,000 degrees Fahrenheit).
Arc flash analysis is the process of examining and analysing a facility’s electrical systems to determine the incident energy available for each piece of electrical equipment. Arc flash research promotes safe working conditions by establishing safety guidelines for skilled electricians working on equipment and circuits. In addition, there are revised electrical one-line diagrams, equipment locations, a short circuit and coordination analysis, and equipment locations.
Objectives of Arc Flash Research:
- Determine the extent of the damage produced by the incident energy emitted during an arc flash fault.
- Modifying the settings of protective equipment to reduce exposure to incident energy
- Provide safety advice on the arc flash hazard.
- Follow your country’s rules and regulations.
- Determine the type of PPE utilized on the job.
The Adverse Consequences of Arc Flash:
- Arcs inflict severe skin, facial, and eye burns.
- Inhaling gases and hot particles may cause internal burns to the oesophagus and lungs.
- Accidents caused by flying items and loose parts
Arc flash studies are essential for lowering risks and enhancing both the general safety of the organization and the safety of the electrical employees. Arc flash research enables the evaluation of electrical hazard levels and the installation of suitable safety measures to limit the risk of burns and accidents. All utilities, manufacturing, industrial, and commercial organizations employing electrical disconnects, motor control, panel boards, and switches must conduct an arc flash study.
Advantages of Arc Flash Study:
- Enhanced human and mechanical safety
- Reduced medical and legal expenses
- Compliance with legal and safety standards
- A reduction in the incidence and severity of code violations
Following are the steps involved in arc flash analysis:
- Data collection
- Conducting on-site verification
- System planning
- Investigating arc flashes
Work Methodology for Arc Flash Research at CareLabs:
CareLabs offers superior services and will accommodate any requirements made by the engineering company, the local contractor, or the construction crew.
The following actions constitute our work procedure:
- Data collection
- Power system simulation with ETAP
- Investigating short circuits
- An examination of the coordination of overcurrent protection devices
- Arc flares are currently being studied
- Conducting arc flash tests
- Maintaining records
- Methods for lowering the possibility of an arc flash
- Large single-line diagrams
- Displaying arc flash caution indicators
- The exhaustive report
Advantages of using CareLabs’ services:
- Construct electrical systems that adhere to safety regulations and standards.
- Protective devices and bus ratings are coupled with integrated modules for exhaustive short circuits, overcurrent coordination, device evaluation, and arc flash evaluation.
- Enhancing workplace safety
- A quick and straightforward alternative recommendation for the optimal design
- Using user-defined arc fault tolerances can boost safety margins.
- Use our computer-assisted analysis to manufacture arc flash labels automatically to save time.
- Reduce maintenance costs and lose productivity.
Crew members are strategically positioned throughout the CareLabs to ensure the availability of specialists in case of a regular or urgent emergency. CareLabs has earned a rapid name for itself as an ISO 9001:2008-accredited business whose customers have supplied constant valuable feedback. Our arc flash investigation and analysis services are available in every major city, including Vienna, Graz, Linz, Salzburg, and Innsbruck. Contact us immediately for a complimentary arc flash investigation and analysis estimate.
Related Services
Arc Flash Study
An arc flash study, also known as an arc flash hazard analysis, is a process of analyzing electrical systems to identify potential hazards related to arc flash events.

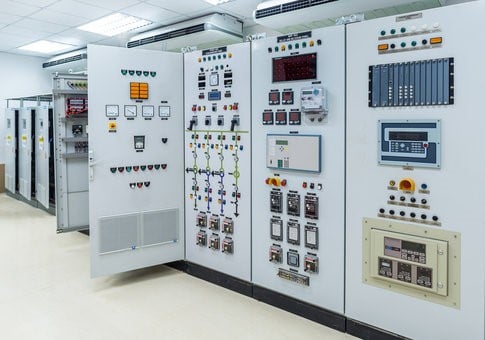

Power System Study & Analysis
Power System Study & Analysis service helps you to have a safe, reliable, and efficient power system for your facility under normal and abnormal circumstances.

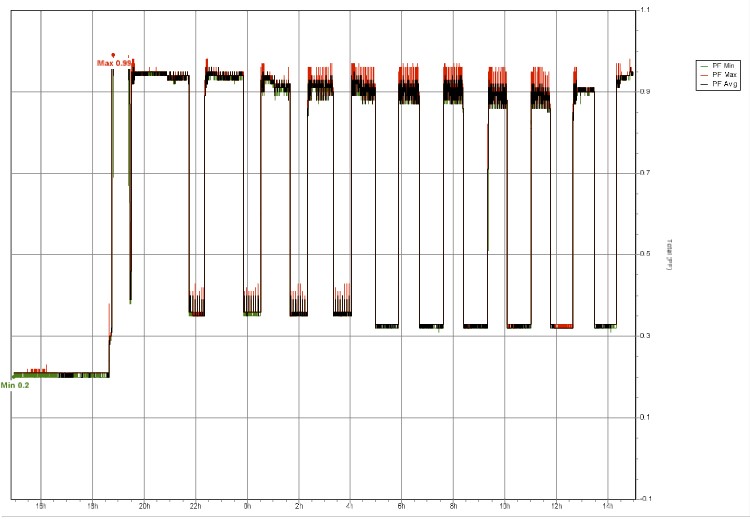

Power Quality Analysis
Power quality analysis is the process of assessing the electrical power supply to ensure it meets the required standards for safe and efficient operation of electrical systems.
Harmonic Study and Analysis
Harmonic voltage analysis is a mathematical method for predicting potential resonances and harmonic distortion levels based on data.

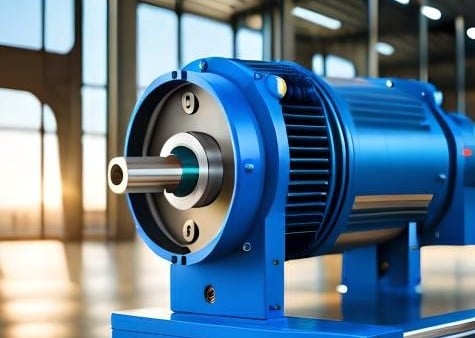

Motor Start Analysis
